System advantages

1. Multi-system integration

This program-controlled switch system is a platform that integrates various services such as voice services, video services, data services, and image services. It can effectively solve the problems such as high investment, inconvenient operation and communication bottlenecks caused by the independent deployment and management of various business platforms that are common within users.

For example: 1) Video surveillance system; 2) Access control system; 3) Broadcasting system; 4) GIS Information System; 5) Public network mobile phones; 6) Fixed-line system; 7) Cluster intercom systems, etc.

Due to the technical limitations of each communication system, they operate independently and cannot be interconnected. Through this program-controlled switch system, seamless interconnection among various communication systems can be achieved, such as one-click meetings, one-click broadcasting, one-click audio and video linkage, public meeting rooms, remote broadcasting release, and other networked linkage functions, which greatly improve communication efficiency.

2. Flexible networking mode

This program-controlled switch system can be deployed based on various networks such as private networks, IP networks, 4G/5G/WIFI, and satellite communications. Users can choose the most appropriate networking mode according to the actual needs of the project.

From the perspective of system management models, various networking modes such as centralized deployment and distributed deployment can be adopted. From the perspective of the basic network, options such as deployment based on IP networks and deployment based on various relays can be chosen. From the perspective of reliability, multiple networking modes such as core platform backup, basic network backup, relay backup, and terminal backup can be selected.

Compared with traditional communication networks, the flexible network deployment mode of the KYKX9000 program-controlled switch system can effectively solve problems such as the single internal networking mode of users, inconvenient later expansion, and poor backup capabilities.

3. Unified local/remote management

The KYKX9000 program-controlled switch supports both local and remote maintenance modes. Supports NAT traversal. Maintenance personnel can remotely log in to the background to perform system monitoring, configuration, modification and other operations, facilitating centralized maintenance and management of the entire system.

4. Support access from various terminals

The KYKX9000 program-controlled switch system supports the integrated access of multiple service terminals and can be uniformly managed. Such as analog /SIP/ magnetic phones, WIFI mobile phones, 4G/5G mobile phones, IP/ analog cameras, microphones, analog/network power amplifiers, network sound columns, speakers, explosion-proof phones, walkie-talkies... .

5. Customized development interfaces and flexible business expansion

This program-controlled switch system provides an open SDK that can be interconnected with various third-party business system platforms, such as the 110 emergency response system, hotel management system, hospital management system, etc.

The system also provides a secondary development interface, facilitating the development of new business functions for the program-controlled switch system based on user requirements in the future, as well as the interconnection and connection with other business platforms.

Feature summary

Military-grade converged communication equipment (Ministry of Industry and Information Technology Network Access Certificate: 04-H446-232677).

Modularization: Supports expansion from 16 channels to 3,584 channels.

Integrated linkage function: Supports the linkage of multiple systems such as video, voice, broadcasting system, cluster intercom, distress alarm, and GIS geographic information.

Supports all calls, group calls and group calls.

Supports one-click alarm, one-click broadcasting and emergency call.

Multi-network convergence: Seamless integration of multiple communication networks (IP, PSTN, GSM, CDMA, satellite communication, WiFi, Wimax, analog trunking, digital trunking, etc.) to achieve the convergence of wired, wireless, fixed and mobile networks.

Supports full-channel recording.

Flexible networking: Supports group networking, multi-level networking, and multi-domain networking.

Support batch deployment of IP telephony.

Remote extension through optical port plates and optical fibers can reduce costs and facilitate maintenance.

Supports convergence function.

The IP relay board also supports IP phone registration.

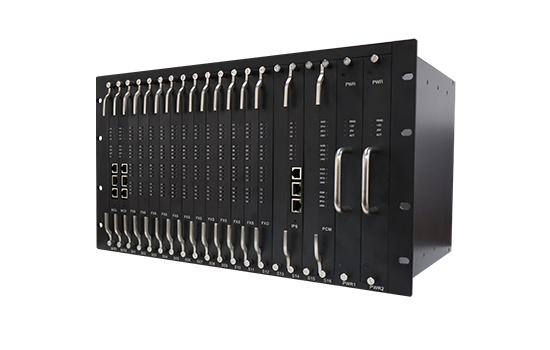

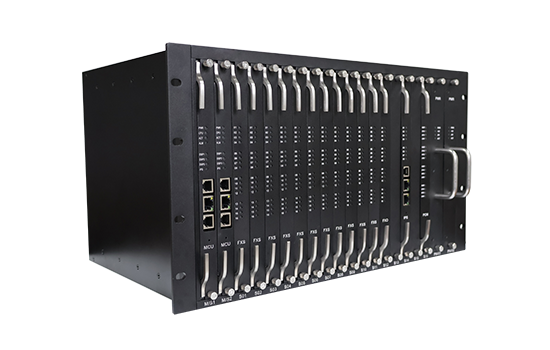

Rich types of board cards: FXS user board, FXO relay board, IPS user board, IPO relay board, E1 digital relay board, E&M relay board, carrier relay board, magnet relay board, REC recording board, HF trunking gateway board, AUD audio interface board, DMB broadcasting system board, ALM dry contact alarm board, RLD fusion linkage system board.

Support redundant hot standby: MCU main control board/secondary power supply board/primary power box/recording board.

The long-distance user board can be connected to terminals as far as 10 kilometers.

All the boards and cards support hot plugging and mixed plugging.

Terminal diversification: analog /SIP/ magnetic phones, WIFI mobile phones, IP/ analog cameras, microphones, headsets, analog/network power amplifiers, network sound columns, speakers, explosion-proof phones, walkie-talkies, SOS alarms, access control systems, etc.

Support integration with third-party platforms such as hotel management systems, hospital management systems, elderly care systems, and fire alarm systems.

Provide an open SDK and support secondary customization and development.

Supports WEB remote debugging and maintenance, can be quickly deployed and easily maintained.

Three-level lightning protection.

Detailed functions

● Multiple relay interfaces, strong networking capability: It provides users with PCM (NO.1, NO.7, ETSI/PRI, etc.) digital relay interfaces, as well as loop relay, E&M relay, carrier relay, magnet relay, SIP relay interfaces. It can flexibly build a converged communication network with various interface methods, and has strong networking capability.

● Fully integrated architecture: Functional modules adopt a distributed structure to disperse the load; Each functional module is relatively independent, and modules at the same level will not affect each other due to faults. The entire machine adopts the TDM architecture and supports the TCP/IP architecture.

● Powerful broadcasting function: Built-in broadcasting system; Supports the access of various types of broadcasting terminals such as analog, digital and SIP. It can achieve one-click broadcasting, timed and targeted broadcasting, process broadcasting, concurrent broadcasting of different voices in multiple regions, and insertion of any switchboard for broadcasting and Shouting, among other broadcasting functions.

● Arbitrary configuration of user relay ratio: Supports flexible configuration of user and relay ratios within the system, and even enables the system to be expanded into a pure external line convergence machine mode.

● Powerful relay convergence function: SIP relays, loop relays, NO.1, NO.7, ETSI (PRI), etc. can be freely converged with each other.

● Full-channel recording function: Built-in full-channel recording, capable of recording all internal extensions as well as calls connected through the main unit, with a recording duration of no less than 30,000 hours.

● Support for multi-system integration and linkage functions: Support for the linkage of multiple systems such as video, voice, broadcasting systems, cluster intercom, distress alarm, and GIS geographic information.

● Full extension codes: 2 groups of full extension codes ranging from 0 to 20 digits in length.

● Relay caller ID: Supports all formats of loop relay or digital relay caller ID.

● Relay group call function: After setting the relay group call function, set up 1 to 5 group call extensions. When an external line calls the relay, the group call extensions will ring in a loop.

● Dedicated relay function: To ensure smooth call traffic in important departments, a certain relay can be set as dedicated. The incoming and outgoing calls of this part of the extension will exclusively use this relay.

● Prefix management: The system has a complete prefix management system and can meet the most complex and professional networking requirements.

Full flexible coding: It can achieve flexible coding for extension numbers. The number length can be arbitrarily numbered from 1 to 8 digits. Flexible numbers for extension numbers of different lengths and different prefixes can coexist simultaneously.

● Interconnection function with vehicle-mounted radios and wireless walkie-talkies: The system supports the connection between the built-in HF board card and the wireless walkie-talkie system. The internal extension and the handheld walkie-talkie can have two-way half-duplex communication.

● Prefix index: All prefix index tables in the system are divided into 8 major groups, providing 8 independent number processing strategies.

Call information: Provide complete internal and external line call detail records.

Intelligent voice service: When any extension dialing a specific function code, the switch will voice report various prompt information such as the system date, time, user extension number, physical address, level, malicious phone number, host version number and music, enabling users to conveniently and quickly obtain the various service information they need.

● Dual-number function on one device: Each extension can have two phone numbers simultaneously, providing a perfect solution for access by multiple operators.

● Ringing of the extension machine: The ringing of the extension machine will immediately stop the ringing flow when it is picked up, and there will be no phenomenon of ringing noise feeding the ears.

Distinguishing between internal and external line ringing: According to the different attributes of incoming calls, the phone emits ringing sounds at different intervals, making it easier for extension users to determine whether the incoming call is an internal or external line.

● External coding: When an extension makes a call through a digital relay, it can choose a 1 to 14-digit external code for the calling number.

● Internal line grouping: Group and manage the extensions within the system to enable one program-controlled switch to be used by multiple different user units.

● Indented dialing (outgoing call replacement) : The indented dialing performance enables the calling user to replace the original multi-digit called number with a 1-2 indented number when calling a frequently contacted called user. This performance can be used for local calls, domestic long-distance calls and fully automatic international long-distance calls, saving dialing time, being easy to remember and convenient to use.

● Inbound call replacement: It enables the replacement of the called number or prefix of the incoming line with the extension number of the switch. This function can solve the problems of multi-operator access and multi-office number access.

● Malicious call query: Extensions can query the calling number of the most recent internal call to this machine.

● Remote maintenance: Users can connect to the Internet or achieve semi-permanent connection through E1, enabling remote programming, real-time call traffic monitoring, call bill inquiry, and software issue resolution, etc., to promptly address users' concerns.

● Multi-level restrictions: A brand-new level definition is provided, allowing extension users to flexibly define level permissions at will. A total of 32 levels are set.

● Designated trunk exit: Extensions can dial the designated trunk line for exit.

● Call forwarding function: It can not only transfer incoming calls from internal or external lines to internal extension lines, but also transfer calls to external lines (mobile phones or landlines). There are four states of call forwarding: all call forwarding, busy forwarding, no response forwarding, and busy forwarding + no response forwarding. Users can set and disable the call forwarding function at any time by using the function code on the phone.

● Busy return call: When making a call between internal lines, if the called extension is busy, the caller should dial "3" upon hearing the busy signal and hang up. When the other party's line is idle, the calling extension will ring automatically. When the calling extension picks up the phone, the called extension rings to indicate the call.

● Dial preprocessing: Powerful dial preprocessing function.

● Duplicate numbers for both inside and outside: All or part of the numbers for both inside and outside are allowed to be duplicated.

● Full record of call records: Full record of call records: Provides full-mode call process records.

● Board card fault detection: Advanced hardware board card fault detection function, automatic fault shielding function, and a complete view of the board card's operating status in the background.

● Detour Relay Route: The detour relay route selects the main route under normal circumstances and will choose the detour route in case of failure. It will automatically complete the recovery or switching function.

● Data Backup: A complete system data backup and recovery function.

● Intelligent routing selection: It can intelligently select routes based on time, called number, and IP network status

● Gain regulation: Automatically adjust the gain of the entire system, sub-units, and relays based on the distance and attenuation of the lines

● Virtual switchboard: This setting can reduce the workload of the switchboard in transferring calls. When an external line call is made to a relay with a virtual switchboard function, the external line is directly connected to the virtual switchboard for ringing and transfer. If the virtual switchboard is busy, it will loop and call the switchboards sorted by physical numbers.

● Self-recorded voice: Users can record relay prompt voice via phone according to their own requirements.

● Built-in voice mailbox: The system offers three high-quality voice guidance prompts, namely the leading voice, the busy voice prompt for sub-machines, and the voice prompt for no response from sub-machines. The system automatically emits corresponding prompt sounds according to the Settings to determine whether the parameter Settings are correct.

This switch provides users with status voice messages, such as date, time, phone bill, extension number, etc.

(2) It can record special computer traffic voices for users.

● Ringback tones: When a user makes a call to the called user, music or voice prompts are played before the called user picks up the phone, replacing the traditional monotonous ringback tone. Personalized music, corporate promotional slogans, and introductions of enterprises and institutions can be set as ringback tones. Users can hear the ringback tones when they call the company number or employees' mobile phones, enhancing the unified image of the enterprise.

● Three-party call: It enables three parties to make calls simultaneously, or you can choose to keep any one party in the call, or you can choose to disconnect any one party.

● Billing system: Equipped with a large-capacity FLASH call record storage system, it can store 2 million billing call records. The rate can be flexibly set, and the call records can be retrieved at will without ever being lost.

● Call record and bill inquiry: Users can inquire or settle the total bill of all extensions and individual extensions within a certain period as needed, and print detailed call records and statistical call records.

● Built-in interactive voice navigation: The system is equipped with a built-in, customizable multi-level menu-based voice navigation system, supporting 128 concurrent voice channels. Users can flexibly design voice prompt content as required, including functions such as key processing, playback completion processing, no response processing, busy processing, transfer to extension, transfer to switchboard, etc. Help enterprises improve service efficiency, enhance their corporate image and achieve more professional services. Users call in to listen to the navigation voice. According to the voice prompts, they dial the corresponding number to guide the external line to the designated internal extension or enter the next level of voice navigation.

● Intelligent Relay: When the intelligent relay function is enabled, the system will record the external line number called by the extension. If no one answers the external line, when the external line calls back, the system can directly switch to the internal extension that made the last call to that external line without going through voice navigation or the switchboard.

● Emergency call function: This series of digital program-controlled switches are equipped with the function that in the event of a sudden emergency, pressing the emergency button on the alarm phone will cause all the extension phones within the group to ring. When the phone is lifted, a specific alarm prompt sound will be played in a loop to prompt other users to evacuate the dangerous area quickly.

● Answering incoming calls: If the calling extension does not answer, other extensions can dial the "function code" to answer the call on their behalf.

● Caller number hiding: Hide your phone number to prevent the other party from showing it.

● Extension hotline function: After an extension user picks up the phone, if they do not dial for a certain period of time (referred to as the hotline duration, which can be set by the extension itself), the system will automatically call the internal extension (internal hotline) or external line number (external hotline) that has been set. This function also enables the automatic elimination of any outgoing prefix without dialing when picking up the device, occupying the relay.

Internal and external line teleconferencing: This series of switches has the function of teleconferencing. Both internal and external line users can participate in the teleconferencing. External line users are allowed to be loop, 2M, E/M or IP trunk. The maximum number of meeting members with the right to speak in each group can be set at 26, and the maximum number of members in each group is 128. This series of switches can hold up to 4 groups of teleconferences simultaneously.

● Do Not Disturb: Set up the Do Not Disturb function to avoid being disturbed by incoming calls when it is inconvenient to answer them.

● Internal/external line transfer: It can transfer incoming calls from both internal and external lines to other extensions.

● Strong insertion/disconnection function for both internal and external lines: To ensure the connection of important calls, it can perform strong insertion/disconnection on both parties currently in a call.

● Day server/Night server function: It offers two modes, day server and night server, with different call methods, extension levels, relay call rights, and call waiting

● When calling for a long time, do not transfer to the switchboard: Listen to the voice call from the outside line and dial the extension number. If the called extension does not answer, the system can choose to transfer to the switchboard. The number of times the call should ring for a long time can be set by yourself.

● Wake-up service (Alarm clock service) : Designed to make the hotel's wake-up service intelligent and flexible, the wake-up time is set by the extension or the main switchboard. When the wake-up time arrives, the extension will automatically ring to remind guests.

● Secretary Function: All calls made to the boss will be transferred to the secretary's extension. Important calls will then be forwarded by the secretary to the boss's extension.

● Blacklist function: Users can add certain external line numbers or harassing calls to the blacklist based on their actual situations. Numbers on the blacklist will not be able to receive calls.

● Low power consumption and energy saving: The entire machine is composed of highly integrated, low-power integrated circuits and electronic components. Under normal circumstances, the entire machine is in a low-power state. Only when the phone is picked up for a call will the corresponding extension enter the working state, achieving the effect of energy saving and power saving.

● Lightning strike resistance: This switch adopts three-level lightning strike protection and has passed the K20 lightning strike resistance test, capable of meeting the special requirements of environments with frequent lightning.
